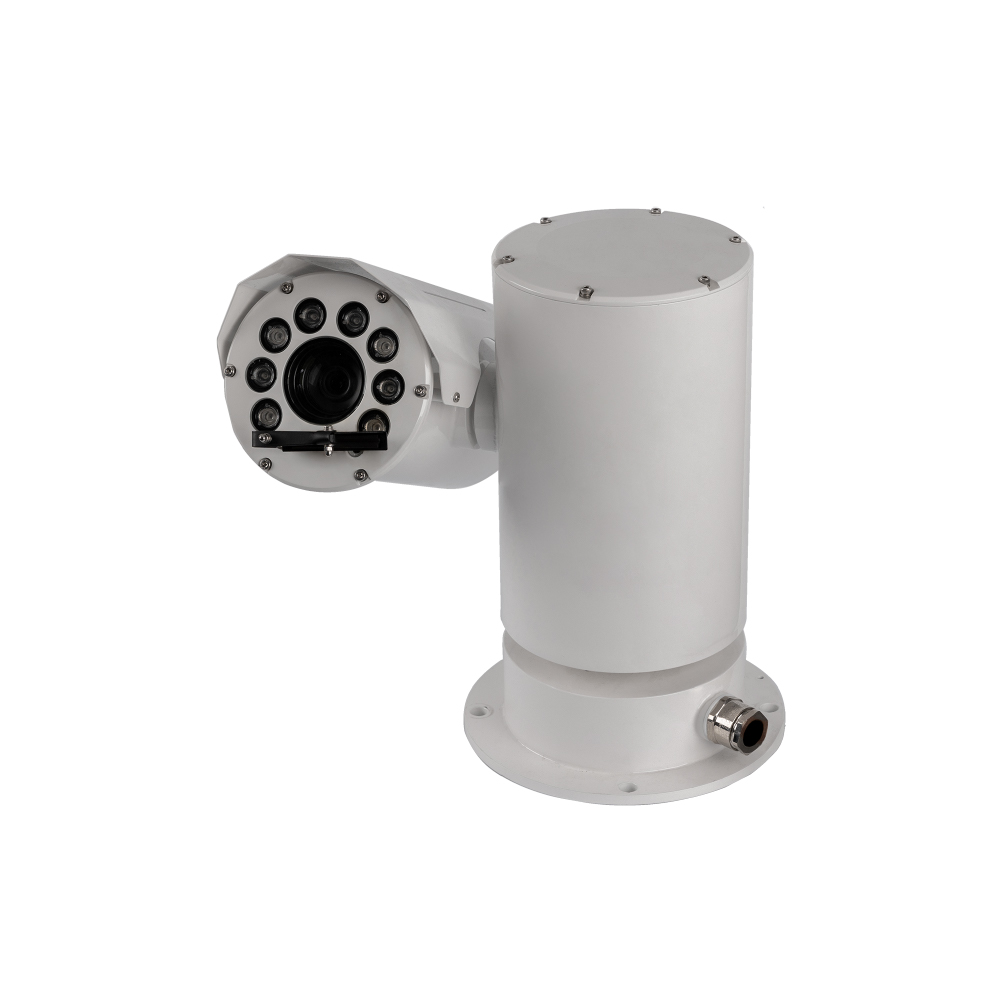

GC-2PF36N 2MP 36 PTZ Camera Stainless Steel 316L 2MP 36X

2MP 36 PTZ Camera

Key Features

• AISI 316L Electro Polished Stainless Steel
• 2MP H.265 Network 36X Zoom PTZ
• Optical Zoom: 36X, 6 ~ 216mm
• Field of View: 55.9°(H) / 33.6°(V)
• 360-Degree Endless Pan / 180-Degree Tilt
• Shock and Vibration Tested
• Tempered Glass
• Built-In Wiper
• Night Vision: Up to 100M
• Optional Power Supply: 24VDC
• Ingress Protection Rating: IP66/67
• Operating Temperature Range: -40°C to 60°C

Product Specifications

Model: VTL-2PF36N

Camera

• Image Sensor: 1/2″ Sony Exmor CMOS
• Scanning Mode: Progressive Scan
• Lens: Optical zoom 36x, 6.0-216mm
• Digital Zoom: 8x
• Angle of View: ± 5%, F1.5 (H: 56.5°-2.1° / V: 33.6°-1.2°)
• Shutter Speed: Automatic/Manual, 1/30,000sec – 1/30sec
• Day/Night Functionality: ICR (auto/day/night)
• Minimum Illumination:
  • Color: 0.05 Lux
  • B/W: 0 Lux (IR LED)
• Camera Settings: DOL HDR, DNR, BLC, HLC, White balance, Exposure control, Mirror, Flip, Privacy masking, Corridor format, LDC, OSD
• Analytics: Tamper, Video motion detection
• IR Distance: 100m
• PTZ Features:
  • Pan: 360° endless
  • Tilt: ±90°
  • Speed: 1.8°-30°/sec
  • Preset Positions: 226
  • System Accuracy: 0.06°

Video

• Compression Formats: H.265 (Main profile), H.264 (High, Main, Baseline profile), MJPEG
• Resolution Options:
  • 1920×1080
  • 1280×720
  • 1024×576
  • 768×432
  • 704×392
  • 640×360
  • 384×216
• Max Frame Rate: 60(50)fps @ 1920×1080
• Streaming Capability: Simultaneous H.265, H.264, and MJPEG (Triple streaming)
• Independent Frame Rate and Bandwidth Control with VBR/CBR

Network

• Security Features: Multi User Authority, IP Filtering, HTTPS
• Protocols Supported:
  • TCP/IP
  • UDP
  • IPv4/v6
  • HTTP
  • HTTPS
  • FTP
  • UPnP
  • RTP
  • RTSP
  • RTCP
  • DHCP
  • ARP
  • Zeroconf
• API Compatibility: Open API, ONVIF profile S, T

General Specifications

• Power Supply: Ethernet RJ-45 (10/100/1000Base-T)
• Power Consumption: 50W (80W with water tank operation)
• Operating Humidity: 0-90% RH (Non-condensing)
• Operating Temperature: -40°C to +60°C
• Ingress Protection: IP66/67
• Dimensions: 320(W)x345(H)x299(D)mm
• Weight: Approx. 18Kg
• Certifications: CE, FCC, KC
• Model Information: 2MP 36 PTZ Camera, Stainless Steel 316L, 2MP 36X Pan/Tilt/Zoom Camera, GC-2PF36N

Additional Information

• NDAA Compliance: Verified
• Firmware Version: v5.1.3.311.SEC
• Firmware File: FTN-A5_v5.1.3.311.SEC.img.encrypt
• HASH (SHA256): 28cf7c2f2e75084d7e6a57fac04a82f9a84b064 b87751d1a20afcce026427638
