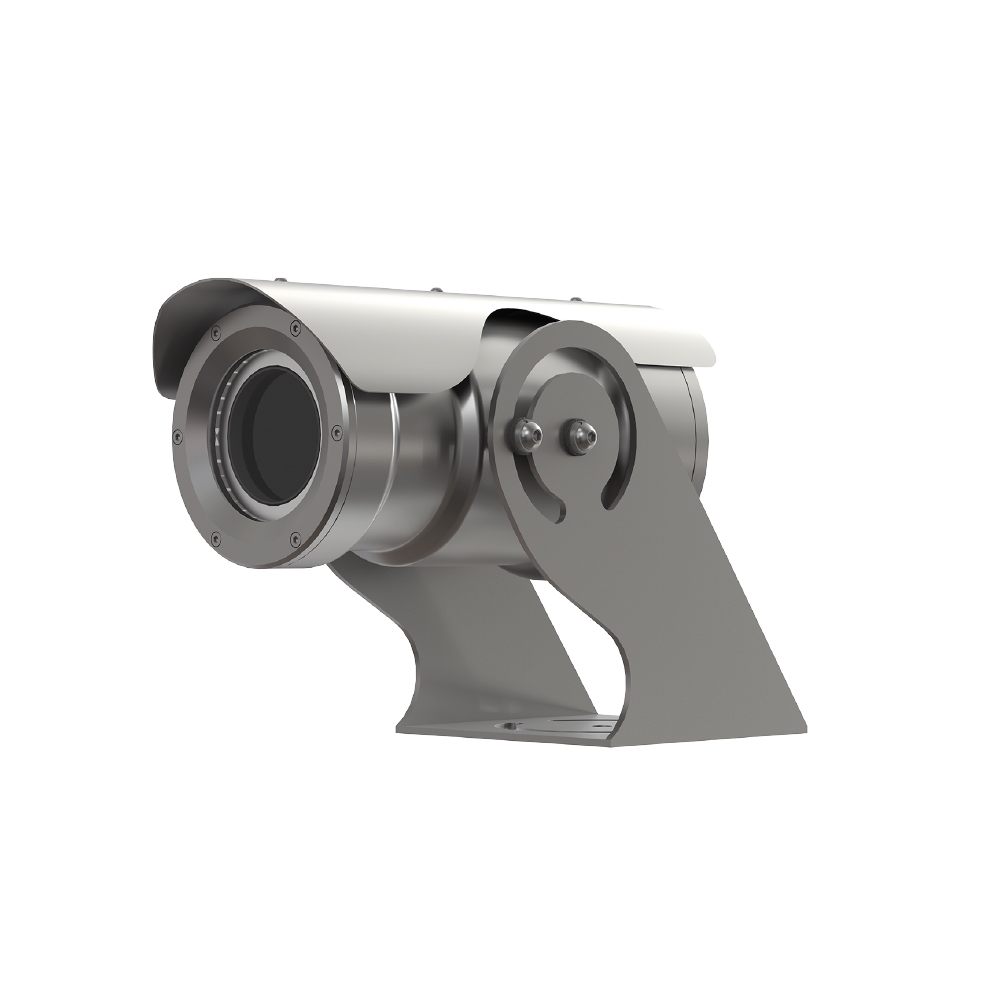

GC-XBN-236Z 2MP 36X Bullet Camera Stainless Steel 316L Ex Proof 2MP 36X

Stainless Steel 316L Ex-Proof 2MP 36X Zoom Camera

Model: GC-XBN-236Z

Key Features

• Material: AISI 316L Electro Polished Stainless Steel
• Image Quality: 2MP H.265 Network with 36X Zoom
• Optical Zoom: 36X, 6 ~ 216mm
• Field of View: 56.5° to 2.1° (H)
• Durability: Shock and Vibration Tested
• Lens Protection: Tempered Glass
• Power Options: 12VDC / POE
• Ingress Protection: IP68
• Operating Temperature Range: -40°C to 60°C

Product Specifications

Model: GC-XBN-236Z

Camera

• Image Sensor: 1/2″ Sony Exmor CMOS
• Scanning Mode: Progressive Scan
• Lens: Optical Zoom 36x, 6.0-216mm
• Digital Zoom: 8x
• Angle of View:
  • Horizontal: H: 56.5° to 2.1°
  • Vertical: V: 33.6° to 1.2°
• Shutter Speed: Automatic / Manual, 1/3,000sec – 1/30sec
• Day/Night Functionality: ICR (auto/day/night)
• Minimum Illumination:
  • Color: 0.05 Lux
  • B/W: 0.01 Lux
• Camera Settings: DOL HDR, DNR, BLC, HLC, White balance, Exposure control, Mirror, Flip, Privacy masking, Corridor format, LDC, OSD
• Analytics: Tamper detection, Video motion detection

Video

• Compression Formats: H.265 (Main profile), H.264 (High, Main, Baseline profile), MJPEG
• Resolution Options:
  • 1920×1080
  • 1280×720
  • 1024×576
  • 768×430
  • 704×394
  • 640×360
  • 384×216
• Max Frame Rate: 60(50)fps @ 1920×1080
• Streaming Capability: Simultaneous H.265, H.264, and MJPEG (Triple streaming)
• Independent Frame Rate and Bandwidth Control: VBR/CBR

Network

• Security Features: Multi User Authority, IP Filtering, HTTPS
• Protocols Supported:
  • TCP/IP
  • UDP
  • IPv4/v6
  • HTTP
  • HTTPS
  • FTP
  • UPnP
  • RTP
  • RTSP
  • RTCP
  • DHCP
  • ARP
  • Zeroconf
• API Compatibility: Open API, ONVIF profile S, T

General Specifications

• Connectors: One conduit entry
• Power Supply: Ethernet RJ-45 (10/100/1000Base-T); Power 2-pin terminal block
• Power Consumption:
  • 250mA (12W) @ PoE
  • 1A (12W) @ 12VDC
• Operating Humidity: 0-90% RH (Non-condensing)
• Operating Temperature: -40°C to +60°C
• Ingress Protection: IP68
• Dimensions: 121(W) x 178(H) x 250(D) mm
• Weight: Approx. 6Kg
• Certifications: ATEX, IECEx, KCs

This Stainless Steel 316L Ex-Proof 2MP 36X Zoom Camera is designed for robust performance in challenging environments, ensuring high-quality surveillance with advanced features and exceptional durability.
