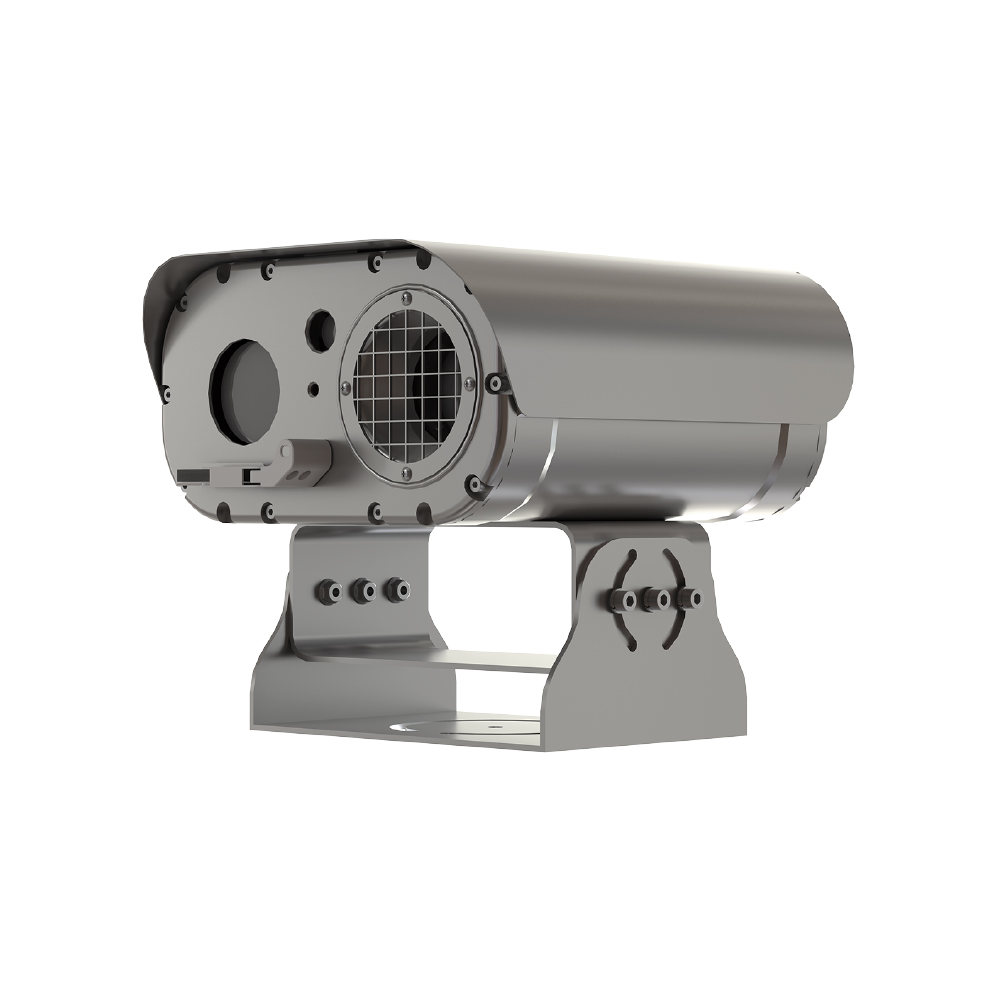

Stainless Steel 316L Ex-Proof 2MP 36X Zoom Camera
Model: GC-XDFN Series
Key Features
- Material: AISI 316L Electro Polished Stainless Steel
- Image Quality: 2MP H.265 Network with 36X Zoom
- Optical Zoom: 36X, 6 ~ 216mm
- Field of View: 56.5° to 2.1° (H)
- Durability: Shock and Vibration Tested
- Lens Protection: Tempered Glass
- Built-in Wiper: Yes
- Night Vision: Up to 80m / 300m (optional)
- Thermal Option: Available with 35mm / VGA / 12μm options
- Power Options: 24VDC
- Ingress Protection: IP68
- Operating Temperature Range: -40°C to 60°C
Product Specifications
Model: GC-XDFN Series
Camera
- Image Sensor: 1/2″ Sony Exmor CMOS
- Scanning Mode: Progressive Scan
- Lens: Optical zoom 36x, 6.0-216mm
- Digital Zoom: 8x
- Angle of View:
- Horizontal: H: 56.5° to 2.1°
- Vertical: V: 33.6° to 1.2°
- Shutter Speed: Automatic / Manual, 1/30,000sec – 1/30sec
- Day/Night Functionality: ICR (auto/day/night)
- Minimum Illumination:
- Color: 0.05 Lux
- B/W: 0 Lux (IR LED)
- Camera Settings: DOL HDR, DNR, BLC, HLC, White balance, Exposure control, Mirror, Flip, Privacy masking, Corridor format, LDC, OSD
- Analytics: Tamper detection, Video motion detection
- IR Distance: Up to 300m with Motorized IR LED
Video
- Compression Formats: H.265 (Main profile), H.264 (High, Main, Baseline profile), MJPEG
- Resolution Options:
- 1920×1080
- 1280×720
- 1024×576
- 768×432
- 704×392
- 640×360
- 384×216
- Max Frame Rate: 60(50)fps @ 1920×1080
- Streaming Capability: Simultaneously H.265, H.264, and MJPEG (Triple streaming)
- Independent Frame Rate and Bandwidth Control: VBR/CBR
Network
- Security Features: Multi User Authority, IP Filtering, HTTPS
- Protocols Supported:
- TCP/IP
- UDP
- IPv4/v6
- HTTP
- HTTPS
- FTP
- UPnP
- RTP
- RTSP
- RTCP
- DHCP
- ARP
- Zeroconf
- API Compatibility: Open API, ONVIF profile S, T
General Specifications
- Connectors: Two M25 conduit entries
- Power Supply:
- Ethernet RJ-45 (10/100/1000Base-T)
- Power 2-pin terminal block
- 1 alarm input, 1 relay, 1 RS485
- Power Consumption:
- 60W (Max. 80W with water tank and IR LED operation)
- Operating Humidity: 0-90% RH (Non-condensing)
- Operating Temperature: -40°C to +60°C
- Ingress Protection: IP68
- Dimensions: 244(W) x 237.5(H) x 270(D) mm
- Weight: Approx. 10Kg
- Certifications: ATEX, IECEx, KCs
Optional Thermal Features
Thermal Detector Specifications:
- Detector Type: Uncooled VOx Microbolometer
- Array Size: 640×480
- Pixel Pitch: 12μm
- Spectral Range: 8-14μm
- Sensitivity (NETD): <50mK @ f1.0
- Frame Rate: 30(25)Hz
- Lens: 35mm, f1.0
- Digital Zoom: 8x
- Angle of View:
- Horizontal: H: 12.5°
- Vertical: V: 9.4°
- Color Palette Options: Red Hot, Iron, Rainbow, Amber, Black Hot, White Hot (Total: 11 Color Support)
This Stainless Steel 316L Ex-Proof 2MP 36X Zoom Camera from the GC-XDFN series provides exceptional performance for surveillance in harsh environments, offering advanced features like thermal imaging and robust durability.
