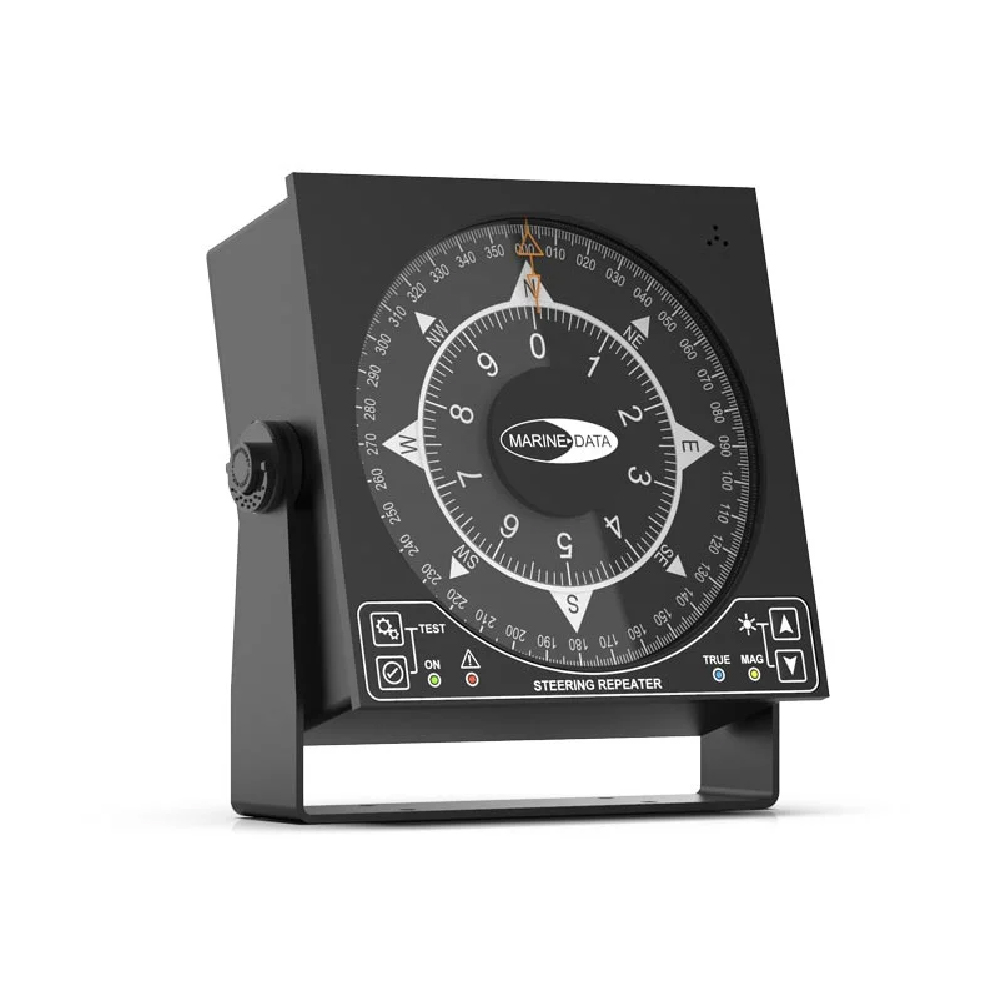

MD68HR Large Dual Scale Steering Repeater Display

The MD68HR is a compact Steering Repeater featuring a 164mm dual-scale compass dial that offers precision reading to one-tenth of a degree and includes intuitive touch panel controls.

OVERVIEW

The MD68HR is an advanced dual-scale Steering Repeater based on NMEA standards. It allows for the digital display and monitoring of heading data at any position on a vessel, with an impressive inner dial resolution of one-tenth of a degree.

When multiple heading sources (such as True and Magnetic) are present, the MD68HR enables users to select their desired heading source and clearly displays which source is currently active.

Designed to be compact and durable, the MD68HR serves as a heading repeater solution for environments with limited space and can be installed as either bulkhead or panel mount. It features a sleek Jet Black (RAL9005) fine-texture powder coat finish that matches well with other marine navigation systems.

The MD68HR from Marine Data is versatile for various applications, easy to install, and straightforward to maintain.

FEATURES

• Precision Dual Scale 36:1 Marine Compass Card Display: Ensures accurate navigation.
• Designed for Vessel Steering: Specifically tailored for effective steering management.
• NMEA 0183 Digital Input: Compatible with standard marine electronics.
• Automatic Baud Rate Detection: Simplifies setup and integration.
• True and Magnetic Source Indication: Easily switch between heading data types.
• Membrane Touch Controls with Remote Dimming Option: Enhances user experience and visibility.
• Rugged, Marinised Aluminium Construction: Built to withstand harsh marine environments.

APPLICATIONS

The MD68HR presents True or Magnetic Heading Data from marine equipment that complies with NMEA 0183 (IEC 61162-1), including devices such as Gyro compasses, TMCs, EMCs, and GPS compasses.

ACCESSORIES

• Panel Mounting Kit: Included for easy installation.

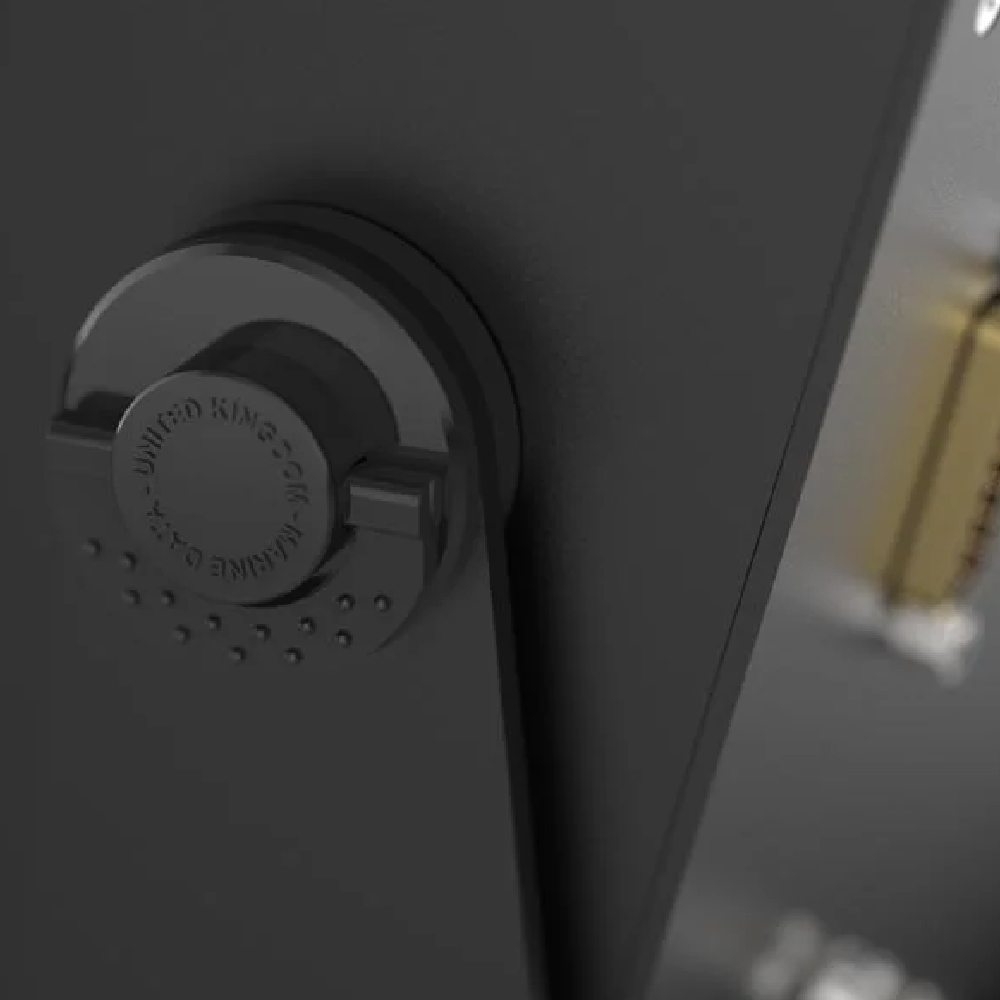

• MD68TB – Bulkhead Trunnion Bracket Mounting Kit: Additional mounting option for flexibility.

RELATED PRODUCTS

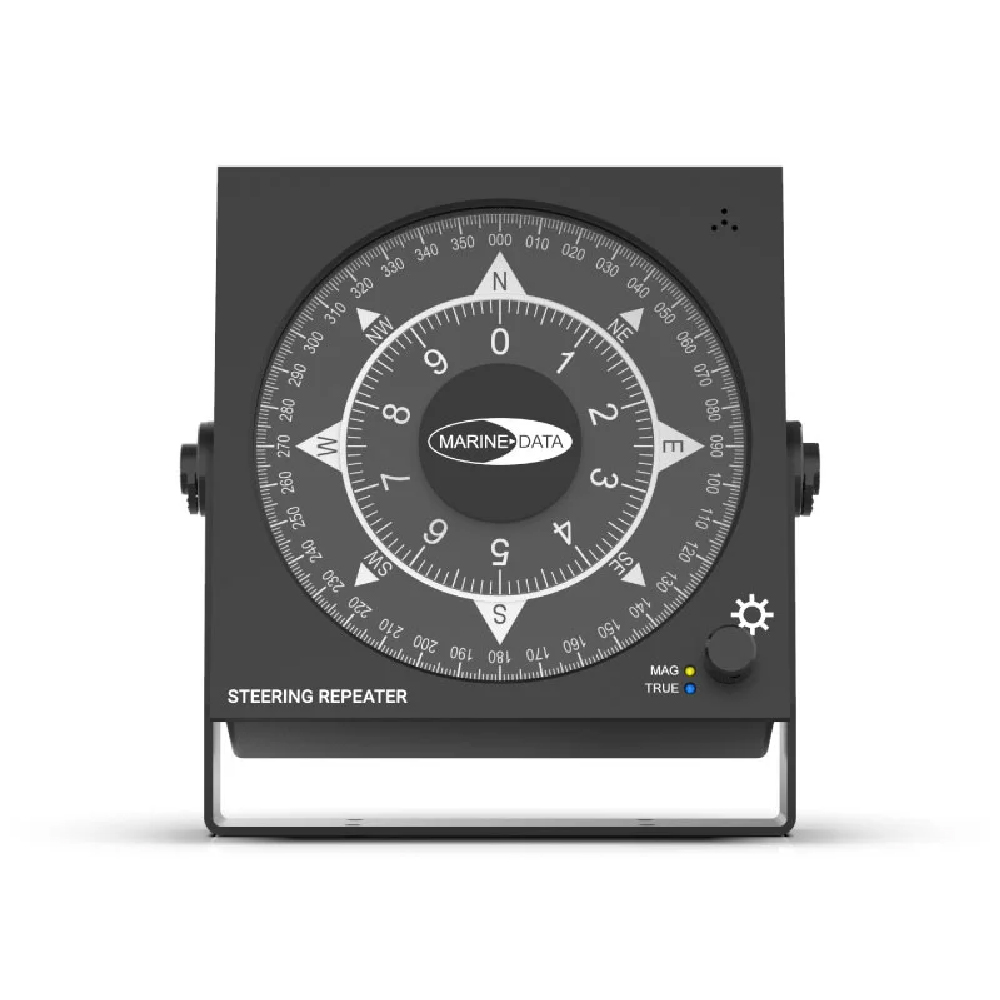

• MD68HRB: Dual Scale Steering Repeater with rotary control.
• MD69BR: Dual Scale Bearing Repeater.
• MD67HR: Weatherproof Compass Dial Heading Repeater.
• MD77HR: Compass Dial Heading Repeater.

What is a Steering Repeater?

A Steering Repeater ensures clear heading information through both a 360° and a 10° compass card. It features indicators for True and Magnetic headings, providing a straightforward understanding of the currently selected heading source. The compass cards are graduated to one-tenth of a degree for precise navigation.
