MD69BR Bearing Compass Repeater Bowl Only

MD69BR/BO Bearing Compass Repeater Bowl Only

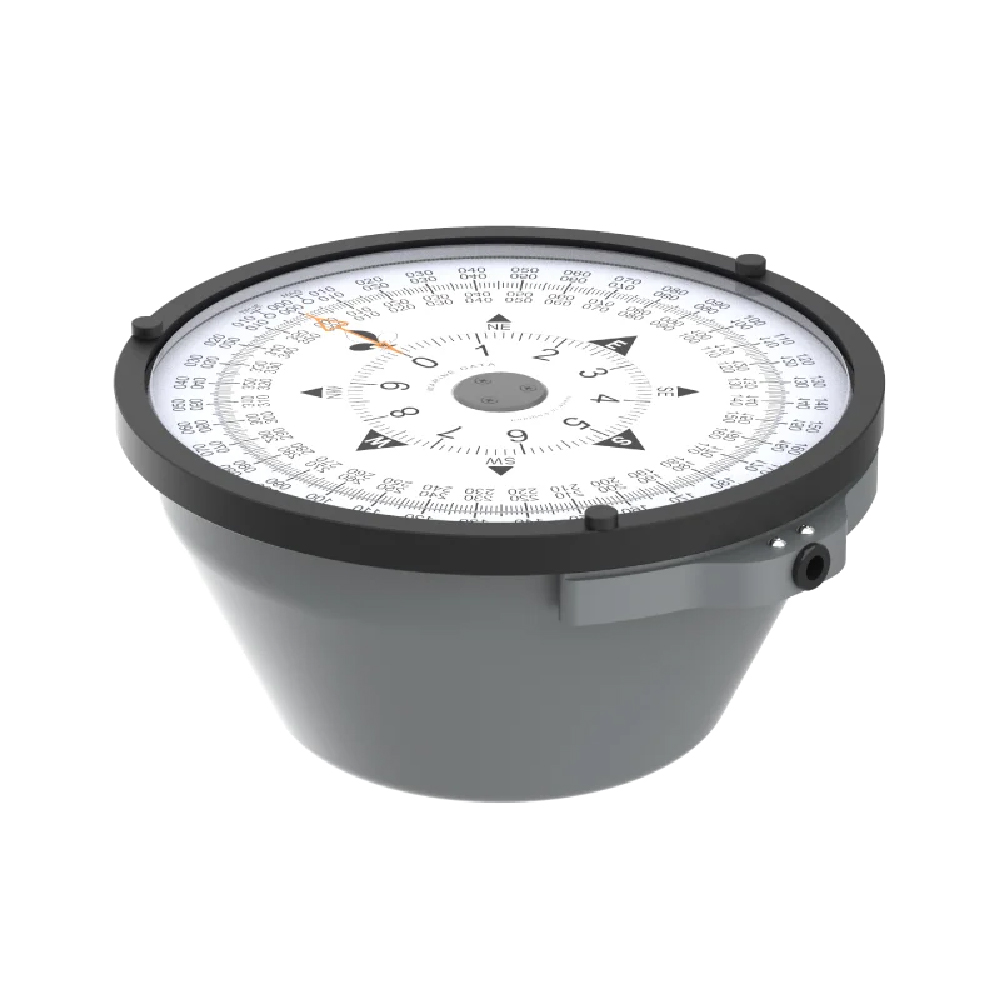

The MD69BR/BO is a Bearing Repeater Bowl specifically designed to fit all Marine Data Systems standard mounting options, as well as for flush surface mounting.

OVERVIEW

The MD69BR/BO is a dual scale NMEA-based heading repeater that comes as a bowl-only option, making it perfect for retrofit, replacement, or panel mounting. It is purpose-built for taking both celestial and terrestrial bearings.

This model features a 36:1 precision dual scale compass card display, which allows for digital heading data (the ship’s heading) to be conveniently shown at any appropriate location on a vessel. It is also fully sealed to meet IEC 60945 Exposed Area Classification standards.

The MD69BR/BO Bearing Repeater Bowl from Marine Data offers flexibility in application, is easy to install, and simple to maintain.

FEATURES

• Weatherproof Marinised Bearing Repeater Bowl
• Dual scale 36:1 precision concentric dial display
• Balanced for taking bearings using optional sights
• Automatic selection and prioritization of NMEA heading data types
• Automatic indication of loss of valid heading data
• Automatic detection of a previously lost heading data type without requiring a reset
• True / Magnetic Source Indication
• Local and Remote dimming control
• Fully sealed to IEC 60945 Exposed Area Classification

APPLICATIONS

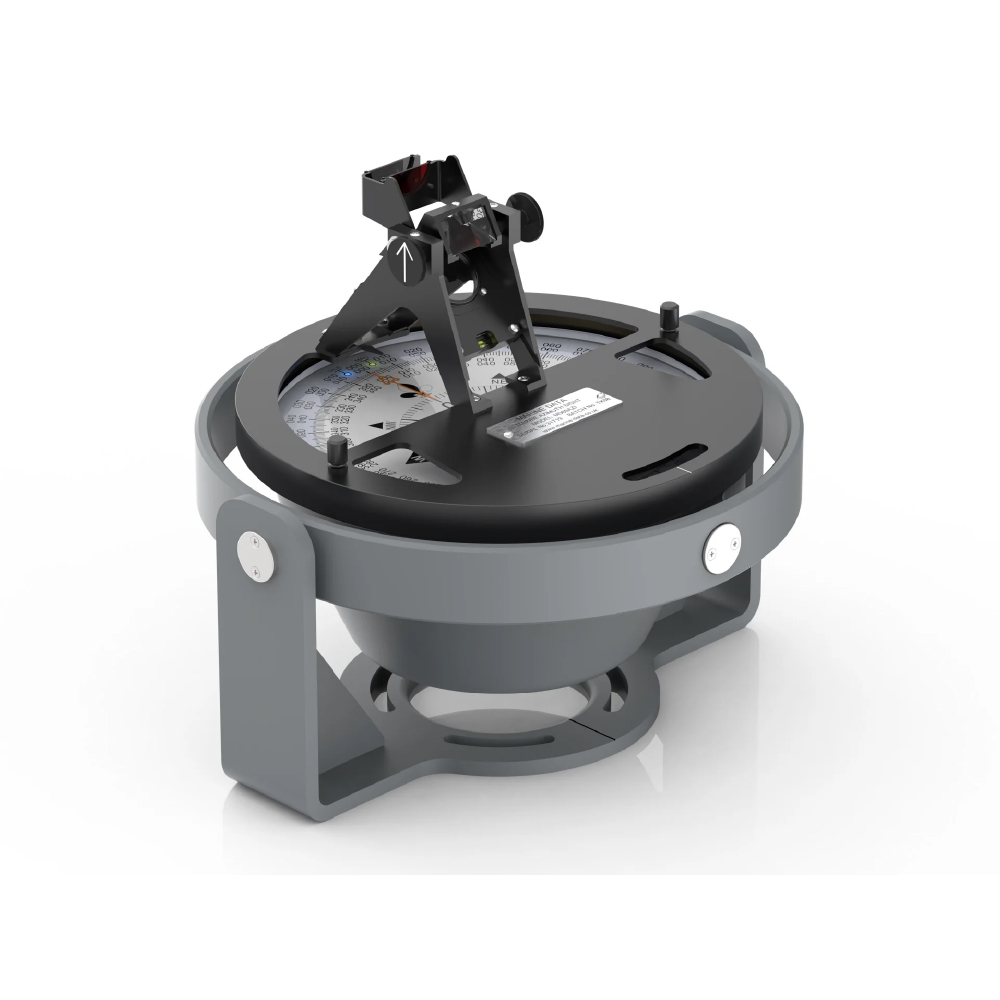

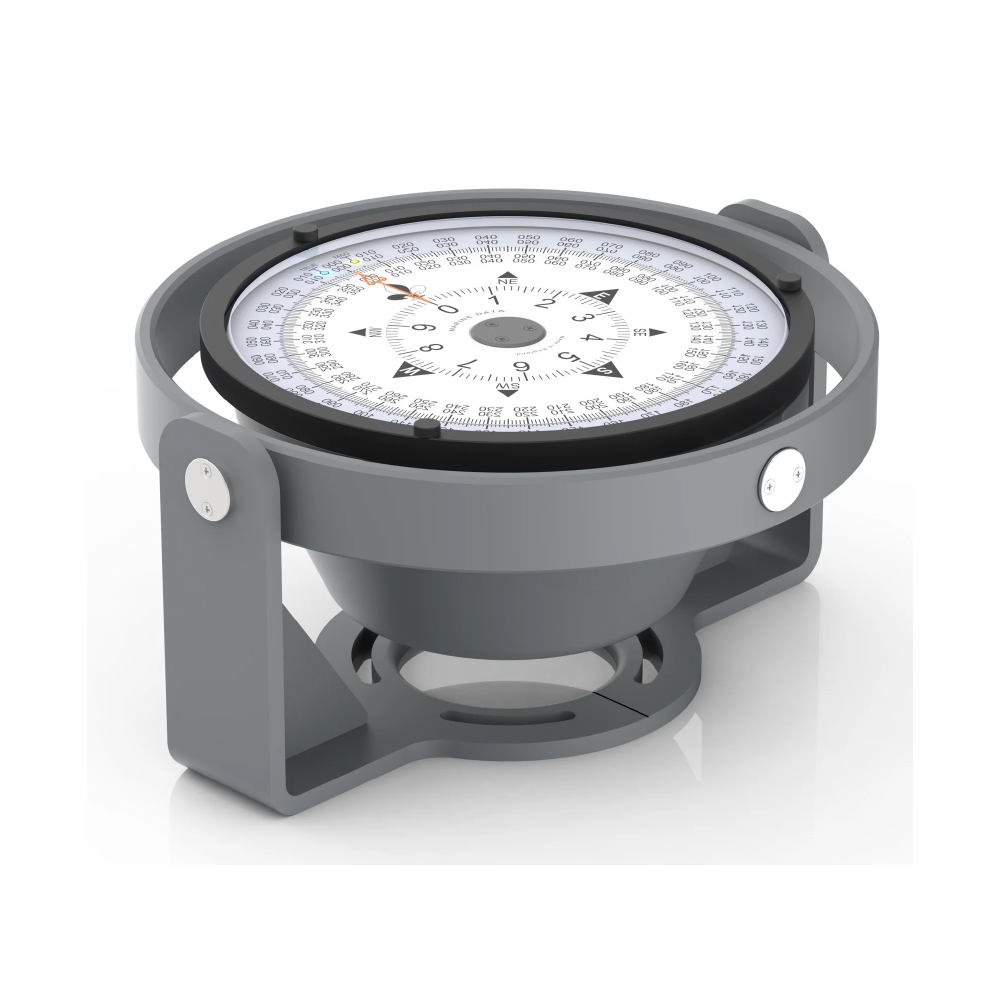

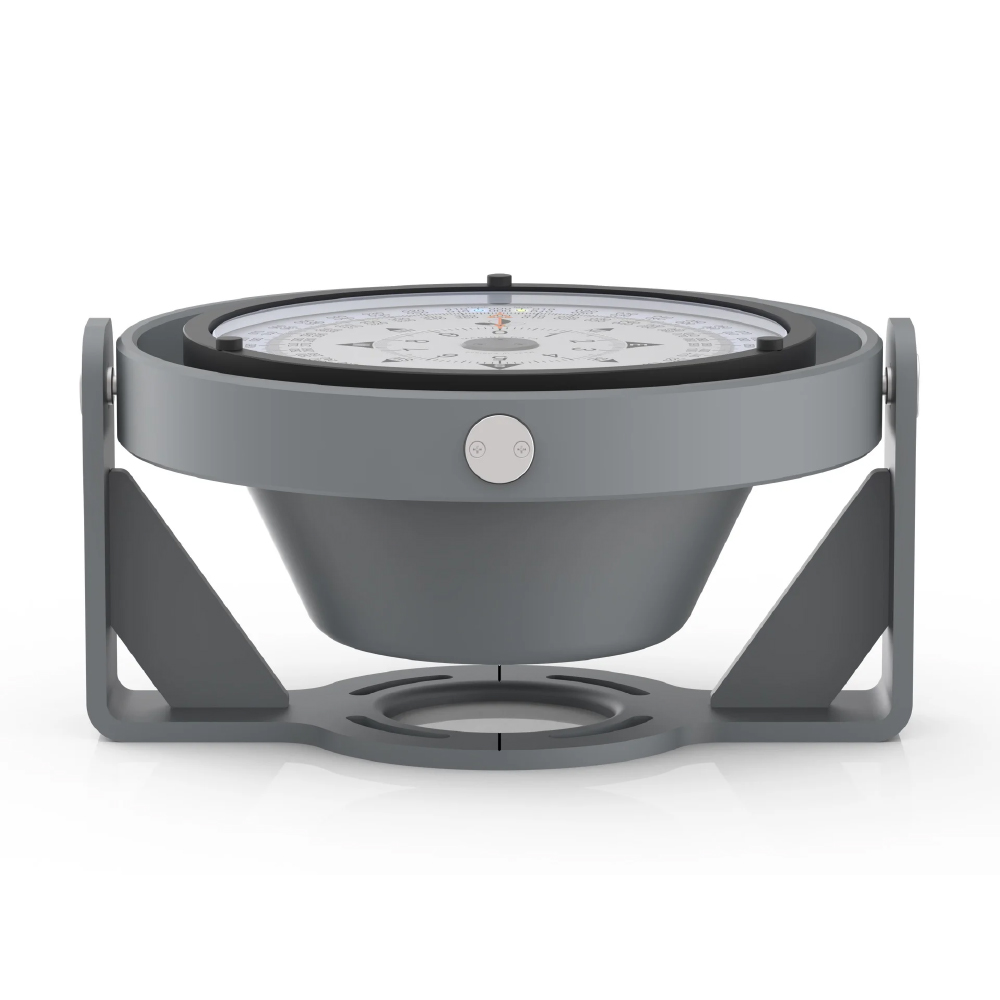

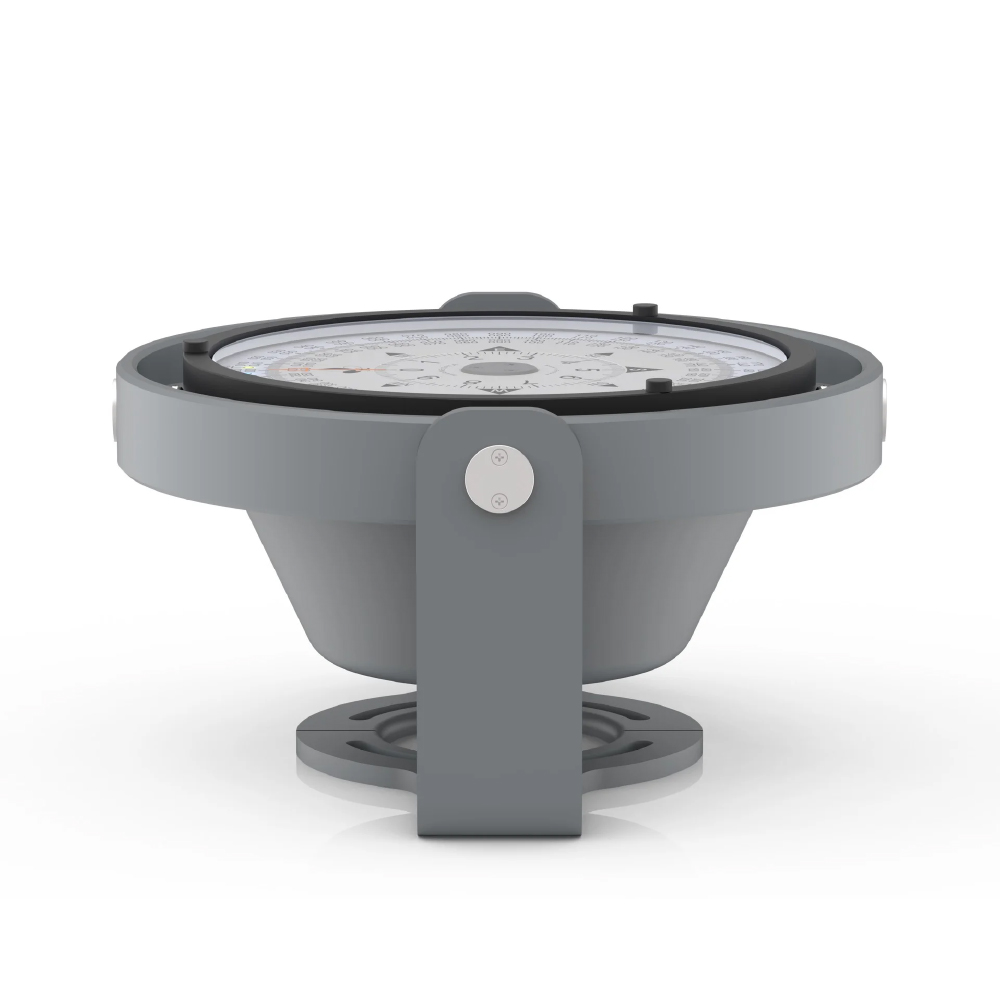

This is the standard MD69 bearing repeater bowl, which can be mounted into the MD69BR Trunnion, Bulkhead Bracket, or Pelorus stand. It duplicates the heading display of a ship’s magnetic or gyro compass at a convenient location on the vessel. Additionally, it allows for celestial and terrestrial bearings to be taken when used with the MD69AZI Azimuth Sight or the MD69BC Bearing Circle. For detailed azimuth measurements, the MD60A2K Telescopic Alidade is recommended.
