Human Input Device for Marine Data Transmitting Heading Device (THD) System
The Human Input Device in a Marine Data Transmitting Heading Device (THD) system allows users to manually enter magnetic correction coefficients and variations while displaying the heading information.
OVERVIEW
Transmitting Heading Device (THD) systems are gaining traction as reliable backups or alternatives to traditional gyro compasses. Marine Data provides both Transmitting Magnetic Compass (TMC) and Electromagnetic Compass (EMC) options. The TMC mirrors the ship’s magnetic compass located in its binnacle, while the EMC independently detects the Earth’s magnetic field as a complete electromagnetic compass.
The user-friendly, menu-driven MD71THD Control and Display Unit facilitates straightforward calibration of the magnetic heading sensor and enables the manual input of variation and deviation corrections. This unit features a crystal-clear digital display of heading information within a compact design.
The MD71THD Control and Display Unit from Marine Data is versatile in application, easy to install, and simple to maintain.
FEATURES
- Control and Display Unit designed for the Marine Data Transmitting Heading Device (THD) system (including EMC and TMC)

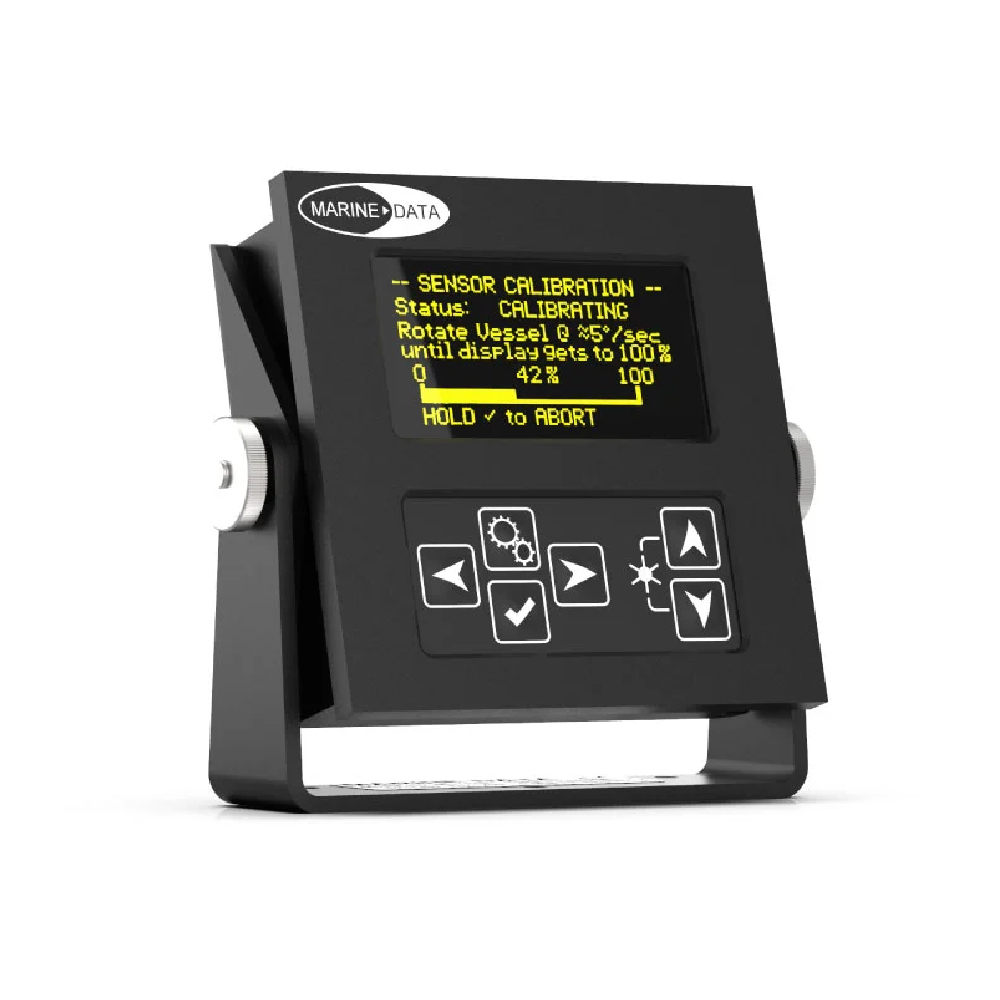

- Automatic compass sensor calibration for TMC

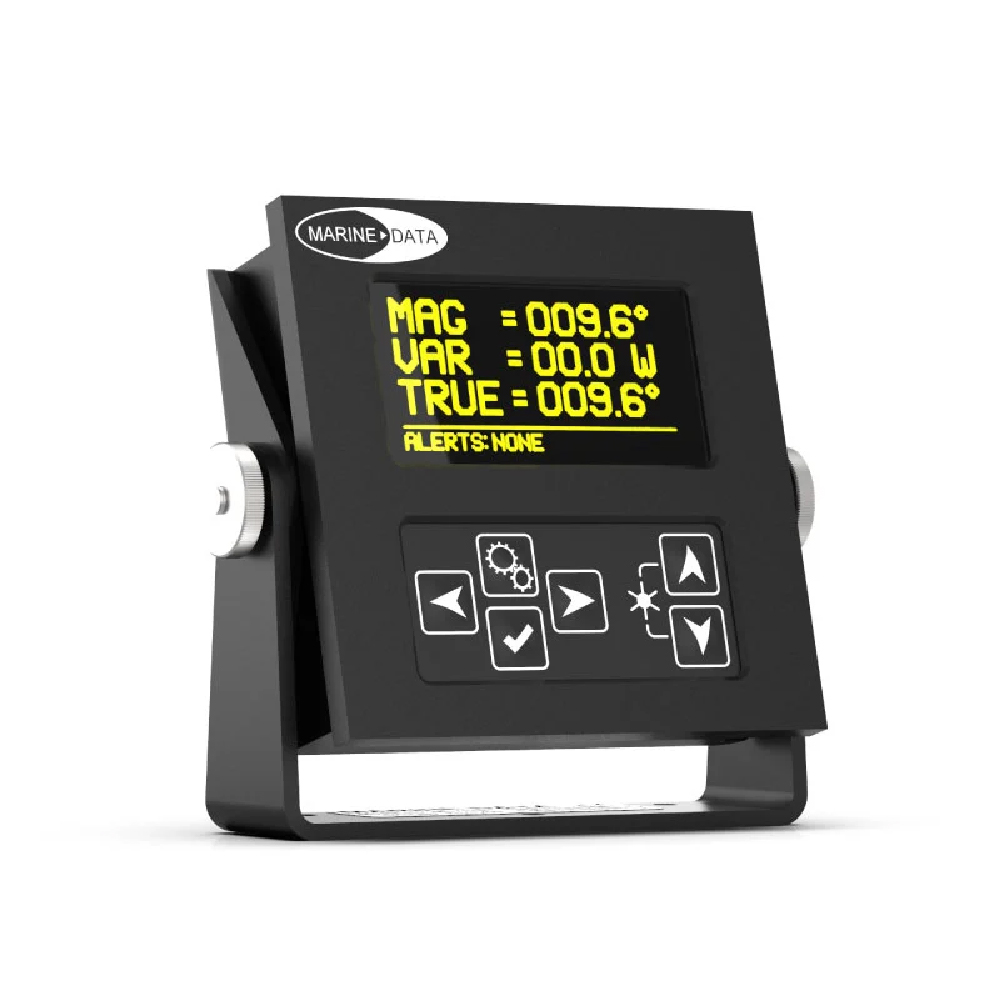

- Displays heading with True or Magnetic Source Indication
- High contrast OLED display for optimal visibility- Equipped with 2x NMEA0183 outputs at the rear for easy data transmissionAPPLICATIONS
- Integrates all essential components of a Marine Data Transmitting Heading (THD) system- Calibrates the magnetic heading sensor while allowing for the manual entry of variation and deviation adjustments- Provides an NMEA0183 output for forwarding heading information to Compass Repeaters and other maritime equipmentACCESSORIES
- MD71TB – Trunnion Mounting Bracket- MD01/PMD – Remote Rotary DimmerOptimize your vessel’s navigation with the MD71THD System, delivering precise heading data and reliable performance.
