MD73HR Tape Compass Heading Repeater

MD73HR: NMEA-Based Heading Repeater with True Moving Tape Display

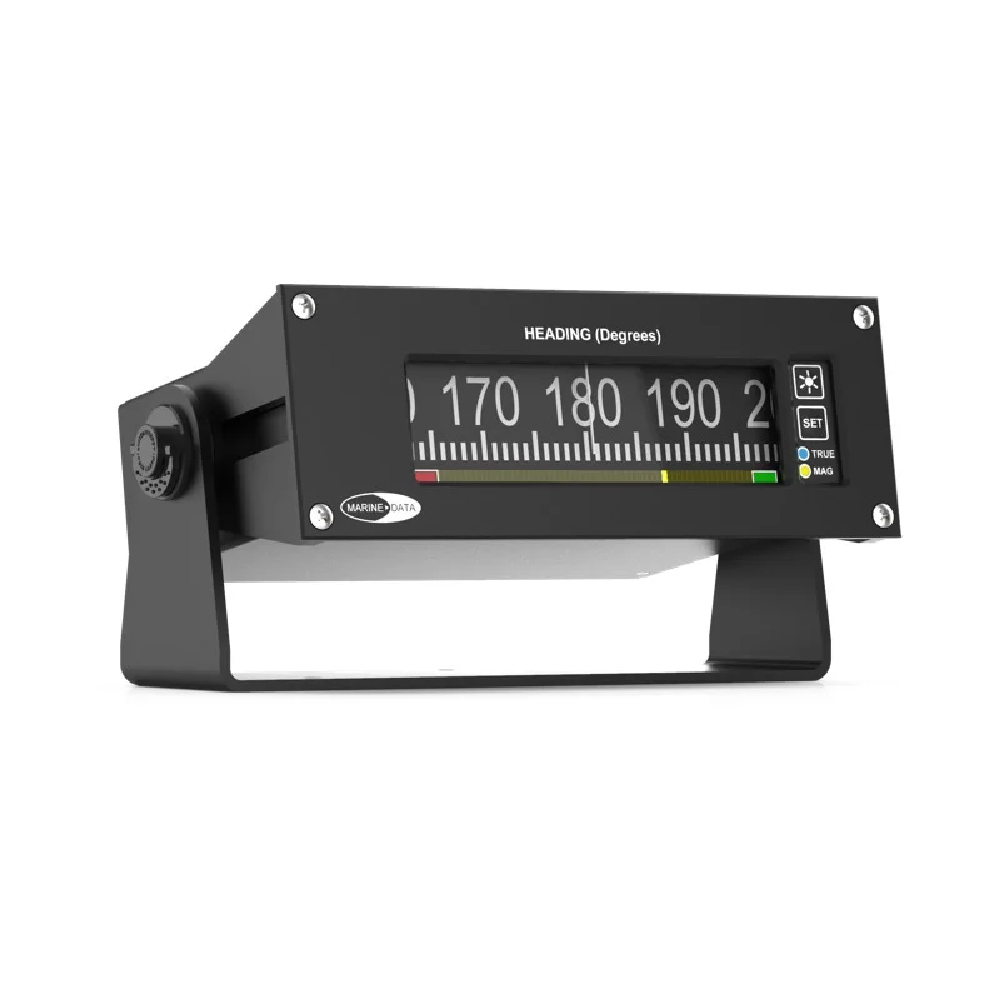

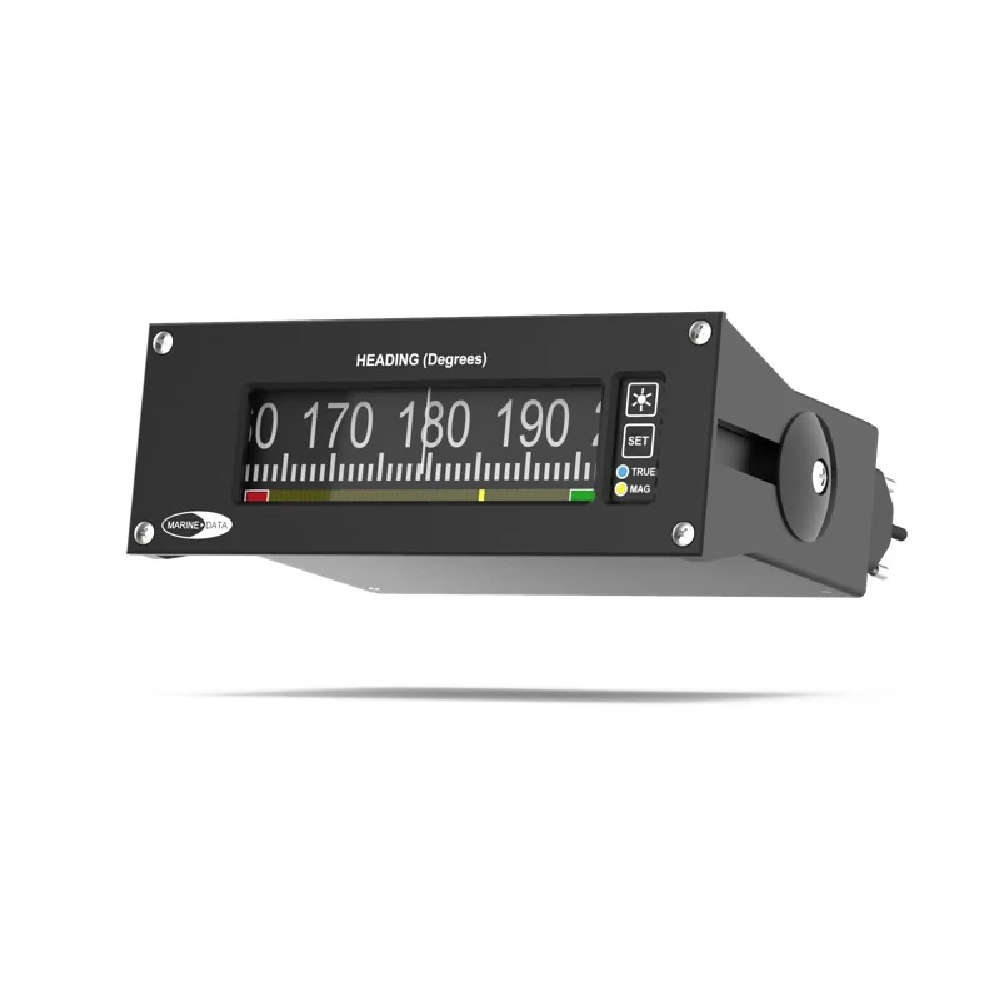

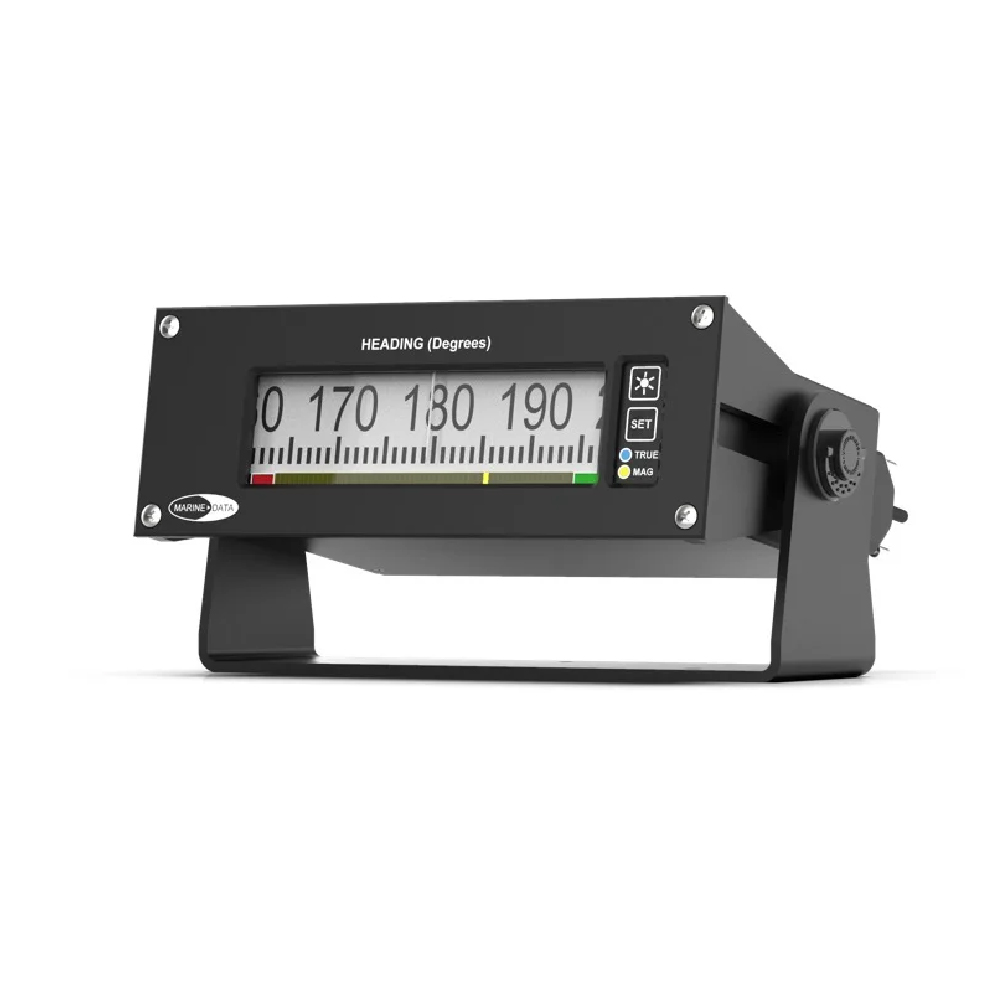

The MD73HR is an innovative NMEA-based heading repeater featuring a true moving tape display for accurate navigation.

OVERVIEW

The MD73HR serves as a reliable NMEA-based heading repeater, effectively displaying digital heading data (ship’s heading) at any convenient location aboard a vessel. It can be configured to present the course to steer across a ±30° range using a bright illuminated LED bar-type display.

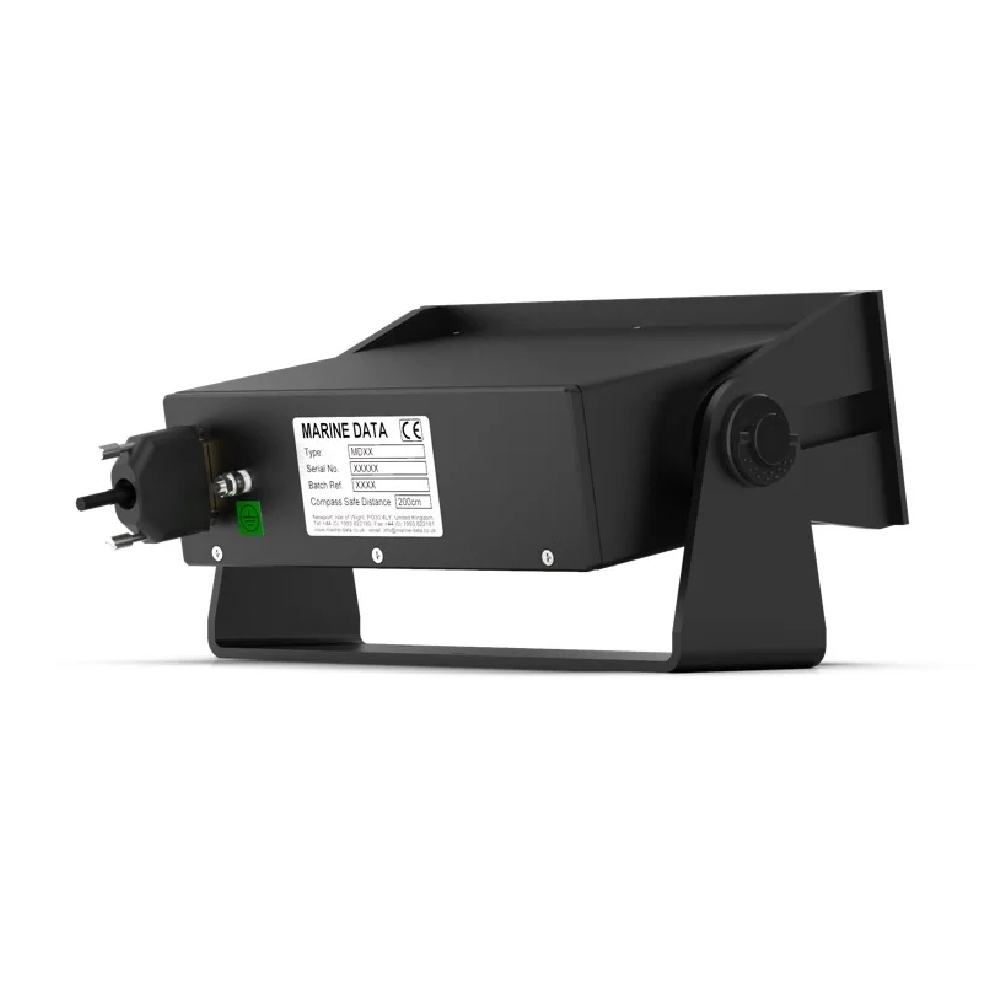

Designed to be compact and durable, the MD73HR is an ideal heading repeater for areas with limited space and can be installed as either a bulkhead or panel mount. It comes finished in Jet Black (RAL9005) with a fine-texture powder coat, ensuring it complements other marine navigation equipment seamlessly.

The MD73HR from Marine Data is recognized for its flexibility in various applications, ease of installation, and low maintenance requirements.

FEATURES

• Large Format, High Contrast True Moving Tape Display- LED Course to Steer Display
• NMEA Digital Input for superior data communication- Automatic selection and prioritization of different NMEA heading data types
• Instant indication of valid heading data loss- Capability to automatically detect previously lost heading data without needing a reset- Displays True or Magnetic Source Indication
• Rugged Construction designed for marine environments- Local Dimming Control for optimal visibility in varying light conditionsAPPLICATIONS
• Repeats the heading information of a ship’s magnetic or gyro compass from any convenient position on board- Provides heading display for an Electro-magnetic Compass System

ACCESSORIES

• Includes Panel Mounting Kit
• Bulkhead Bracket Mounting Kit available for versatile installation optionsEnhance your vessel’s navigational capabilities with the MD73HR, offering exceptional heading data visibility and reliability for marine operations.
